Detalles del producto

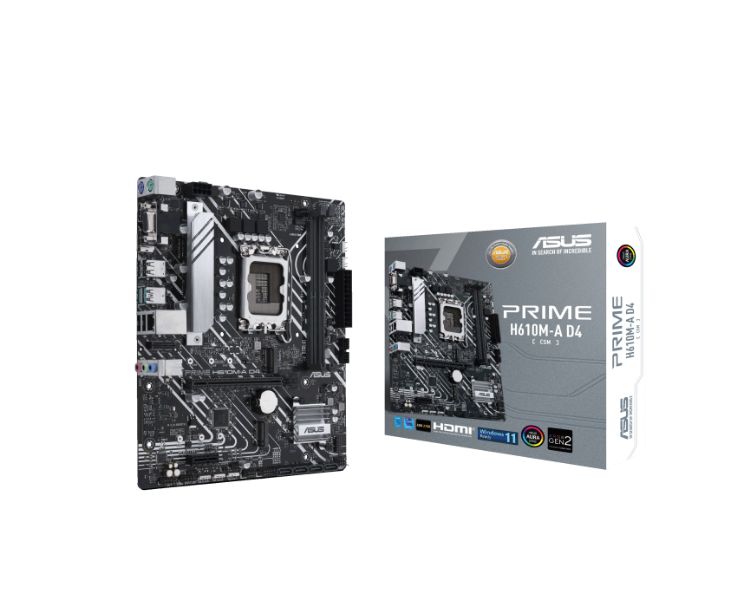

Zócalo Intel® LGA 1700: Listo para procesadores Intel® de 12.ª generación. Refrigeración integral: disipador térmico VRM, disipador térmico PCH y Fan Xpert 2+. Conectividad ultrarrápida: ranura M.2 de 32 Gbps, puertos Intel ® 1 Gb Ethernet y USB 3.2 Gen 2. Aura Sync RGB: encabezados Gen 2 direccionables incorporados para tiras de LED RGB, sincronizados fácilmente con hardware compatible con Aura Sync. ASUS Control Center Express (ACCE) para facilitar la gestión de terminales de TI. . Especificaciones:. . CPU. . Intel® Socket LGA1700 for 12th Gen Intel® Core, Pentium® Gold and Celeron® Processors*. Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**. ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.. . Chipset. . Intel® H610 Chipset. . Memory. . 2 x DIMM, Max. 64GB, DDR4 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 Non-ECC, Un-buffered Memory*. Dual Channel Memory Architecture. Supports Intel® Extreme Memory Profile (XMP). * Actual memory data rate depends on the CPU types and DRAM modules, for more information refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).. . Graphics. . 1 x DisplayPort**. 1 x D-Sub port. 1 x HDMI® port***. * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.. ** Supports max. 4K@60Hz as specified in DisplayPort 1.4.. *** Supports 4K@60Hz as specified in HDMI 2.1.. . Expansion Slots. . Intel® 12th Gen Processors. 1 x PCIe 4.0 x16 slot. Intel® H610 Chipset. 1 x PCIe 3.0 x1 slot. . Storage. . Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports. Intel® H610 Chipset. M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode). M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x2 mode). 4 x SATA 6Gb/s ports. . Ethernet. . 1 x Intel® 1Gb Ethernet. . Wireless & Bluetooth. . V-M.2 slot only (Key E, CNVi & PCIe)*. * Wi-Fi module is sold separately.. . USB. . Rear USB (Total 6 ports). 2 x USB 3.2 Gen 2 ports (2 x Type-A). 4 x USB 2.0 ports (4 x Type-A). Front USB (Total 5 ports). 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports. 2 x USB 2.0 headers support additional 3 USB 2.0 ports. . Audio. . Realtek 7.1 Surround Sound High Definition Audio CODEC*. – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking. – Supports up to 24-Bit/192 kHz playback. Audio Features. – Audio Shielding. – Premium audio capacitors. – Dedicated audio PCB layers. * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.. . Back Panel I/O Ports. . 2 x USB 3.2 Gen 2 ports (2 x Type-A). 4 x USB 2.0 ports (4 x Type-A). 1 x DisplayPort. 1 x HDMI® port. 1 x D-Sub port. 1 x V-M.2 slot (Key E). 1 x Intel® 1Gb Ethernet port. 3 x Audio jacks. 1 x PS/2 Keyboard (purple) port. 1 x PS/2 Mouse (green) port. . Internal I/O Connectors. . Fan and Cooling related. 1 x 4-pin CPU Fan header. 2 x 4-pin Chassis Fan headers. Power related. 1 x 24-pin Main Power connector. 1 x 8-pin +12V Power connector. Storage related. 2 x M.2 slots (Key M). 4 x SATA 6Gb/s ports. USB. 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports. 2 x USB 2.0 headers support additional 3 USB 2.0 ports. Miscellaneous. 3 x Addressable Gen 2 headers. 2 x AURA RGB headers. 1 x Clear CMOS header. 1 x Front Panel Audio header (AAFP). 1 x COM Port header. 1 x S/PDIF Out header. 1 x Speaker header. 1 x SPI TPM header (14-1pin). 1 x 10-1 pin System Panel header. . BIOS. 128 Mb Flash ROM, UEFI AMI BIOS. . Manageability. . WOL by PME, PXE. . Form Factor. . mATX Form Factor. 9.6 inch x 8.3 inch (24.4 cm x 21.1 cm)
